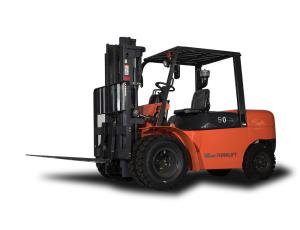

7 Ton Lightweight Diesel Powered Forklift Hoist Lift Truck No Oil Leakage

Diesel Forklift / lightweight forklift product Characteristics

Integrated central control box the reliability of electric system

Ergonomical design ensures best operation

Energy-saving hydraulic system decreases fuel consumption

High-quality hydraulic hoses, no oil leakage

• Item		Specification		Unit	Parameter
  General	1	Model			CPCD70
  	2	Power Type/model			Diesel
  	3	Rated Capacity		Kg	7000
  	4	Load Center		mm	600
  Dimensions	5	Lift Height		mm	3000
  	6	Fork Size(LxWxT)		mm	1220×150×65
  	7	Fork Spread(outside)(Min./Max)		mm	450/1960
  	8	Mast Tilt Angle(F/R)		deg	6·/12·
  	9	Fork Overhang		mm	680
  	10		Length without forks	mm	3590
  	11		Overall Width	mm	1995
  	12		Mast Lowered Height	mm	2625
  	13		Overhead Guard Height	mm	2485
  	14	Outer turning Radius		mm	3360
  Performance	15	Speed(Unload/Load)	Travel	km/h	22/11
  	16		Lifting	mm/s	300
  	17	Max.gradeability(Load)		%	20
  	18	Max.drawbar pull(Load)		KN	35
  	19	service Weight		kg	9350
  Wheels&Tires	20	Tire	Front		4×8.25-15-14PR
  	21		Rear		2×8.25-15-14PR
  	22	Tread	Front	mm	1470
  	23		Rear	mm	1550
  	24	Wheelbase		mm	2250
  	25	Ground Clearance(Under mast)		mm	220
  Power& Transmission	26	Battery	Voltage/Capacity(5HR)	VA/h	2×12/80
  	27	Engine	Model		6BG1
  	28		Manufacture		ISUZU
  	29		Rated Output	Kw	82
  	30		Rated Torque	N.m	353
  	31		No.Of Cyinder		6
  	32		Bore*stroke	mm	102/118
  	33		Displacement	L	5.785
  	34	Transmissions	Manufacture		VMAX
  	35		Type		Fluid TorqueConverter
  	36		StageFWD/RVS		2/2
  	37	Operating Pressute		Mpa	19

  Wide-view mast design improves the productivity and safety
